In the modern age construction activities, our batching plants fit in perfectly to provide a uniform mix of concrete ensuring smooth operations at project sites.

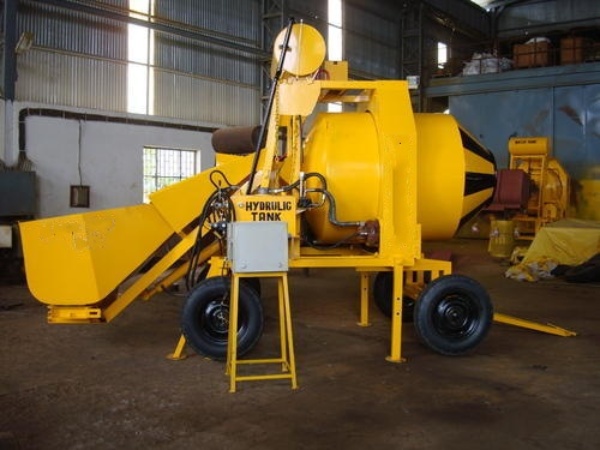

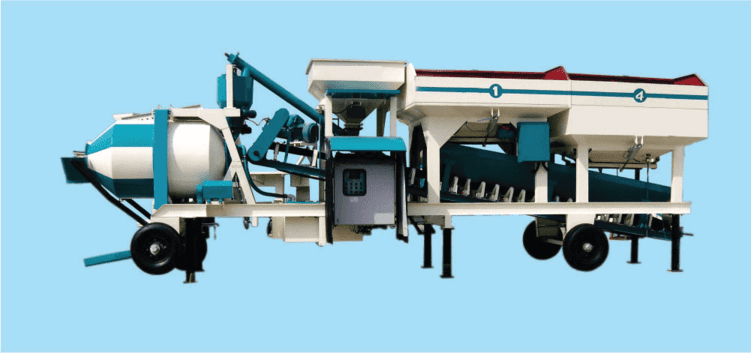

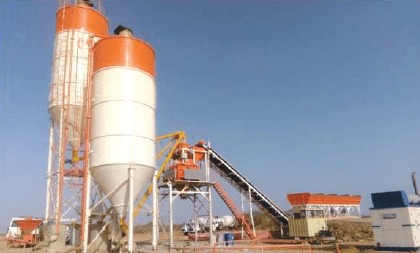

Conco Engineering Batching Plant - Drum Mixer, which reflect Conco Engineering manufacturing culture based on high technology provides the following advantages to its users
| Model | NE-18 MD | NE-25 MD |
| Out Capacity | 18 M3 / HR. | 25 M3 / HR. |
| Hoppers | 4 X 2.0 M3 | 4 X 2.0 M3 |
| Batch Capacity | 0.4 CU.M HR | 0.45 CU.M HR |
| Mixer | REVERSIBLE DRUM TYPE | |
| Water Pump | Mono Block | Mono Block |
| Additive Pump | Self Priming | Self Priming |
| Cement Bin | 1 Tons | 1 Tons |
| Discharge Height | 1.5 MTRS. | |
| Power Required | 26 HP | 31 HP |
| Tyer Size | 7.50 X 16-2 Nos and 10.00 X20-2Nos (Optional) | |
| Power Supply | 415 V,50 Hz,3 PHASE,AC | |

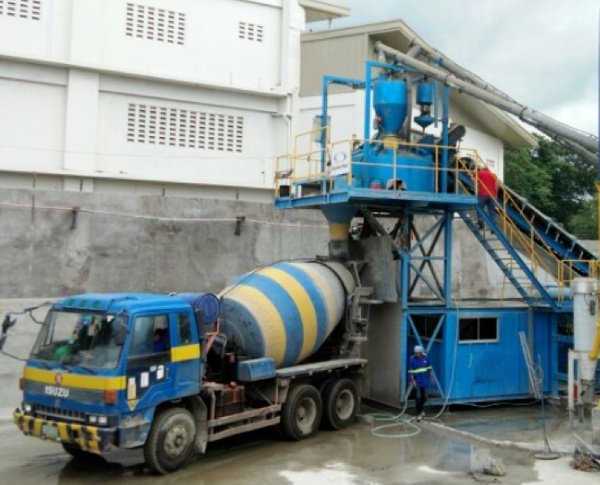

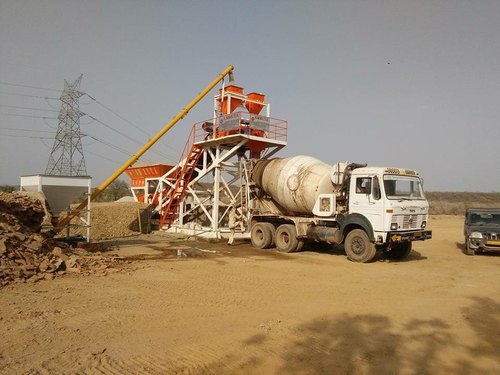

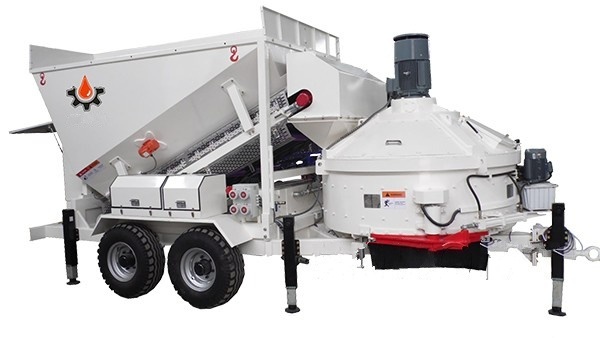

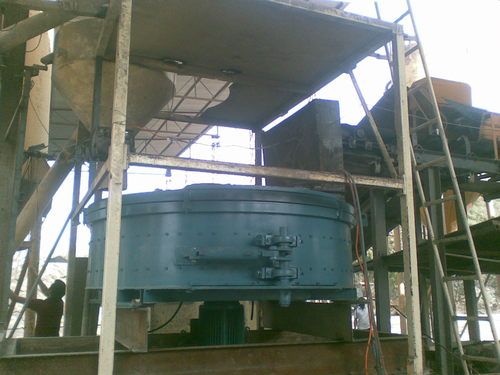

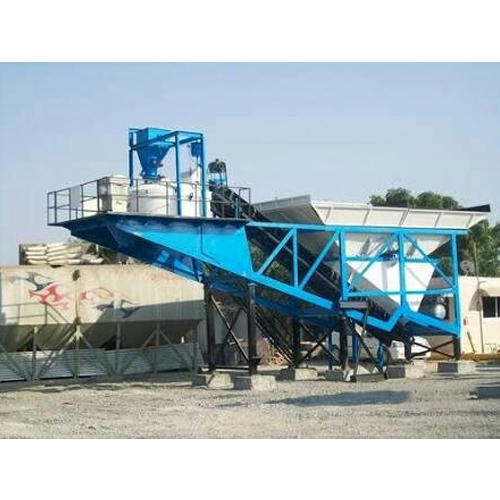

Conco Engineering Batching Plant – Pan Mixers, which reflect Conco Engineering manufacturing culture based on high technology provides the following advantages to its users:
| Model | NE-30 SP | NE-45 SP | NE-60 SP |
|---|---|---|---|
| Out Capacity | 30 m³/h. | 45 m³/h. | 60 m³/h. |
| Hoppers | 4 X 5.0 m³ | 4 X 7.0 m³ | 4 X 8.0 m³ |
| Mixer | PAN TYPE | PAN TYPE | PAN TYPE |
| Batch Capacity | 0.50 CU.M HR | 0.75 CU.M HR | 1.0 CU.M HR |
| Water Pump | Submersible | Submersible | Submersible |
| Additive Pump | Self Priming | Self Priming | Self Priming |
| Cement Bin | 1.5 Tons | 2 Tons | 2 Tons |
| Discharge Height | 4 MTRS. | ||
| Power Required | 64.0 HP | 71.0 HP | 81.0 HP |
| POower Supply | 415 V, 50 Hz, 3 PHASE, A.C. | ||

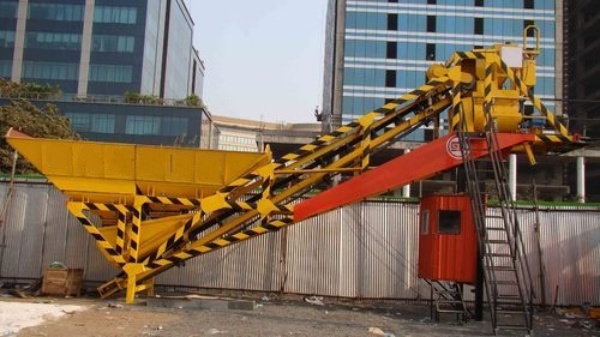

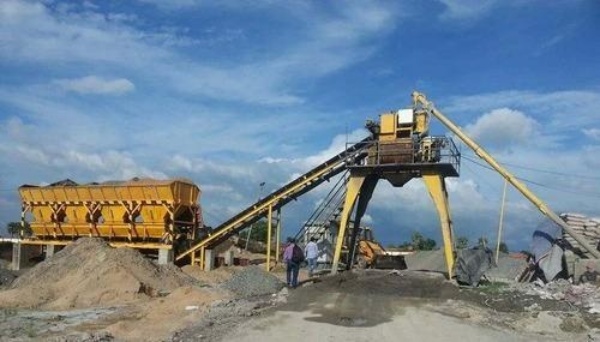

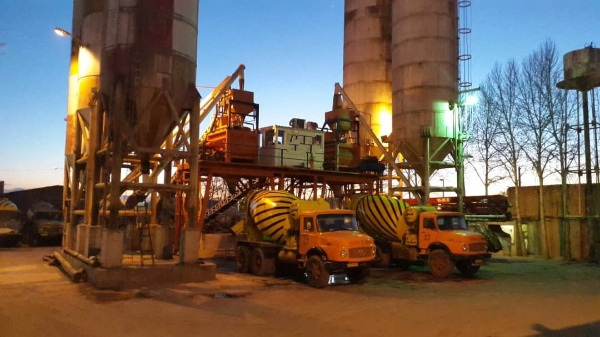

Conco Engineering Batching Plant – Twin Shaft Mixer, which reflect Conco Engineering manufacturing culture based on high technology provides the following advantages to its users:
| Model | NE-30 SP | NE-45 SP | NE-60 SP |
|---|---|---|---|
| Out Capacity | 30 m³/h. | 45 m³/h. | 60 m³/h. |
| Hoppers | 4 X 5.0 m³ | 4 X 7.0 m³ | 4 X 8.0 m³ |
| Mixer | TWIN SHAFT TYPE SICOMA MAKE | ||
| Batch Capacity | 0.50 CU.M HR | 0.75 CU.M HR | 1.0 CU.M HR |
| Water Pump | Submersible | Submersible | Submersible |
| Additive Pump | Self Priming | Self Priming | Self Priming |
| Cement Bin | 1.5 TONS | 2 TONS | 2 TONS |
| Discharge Height | 4 MTRS. | ||
| Power Required | 71.0 HP | 81.0 HP | 91.0 HP |
| Power Supply | 415 V, 50 Hz, 3 PHASE, A.C. | ||
